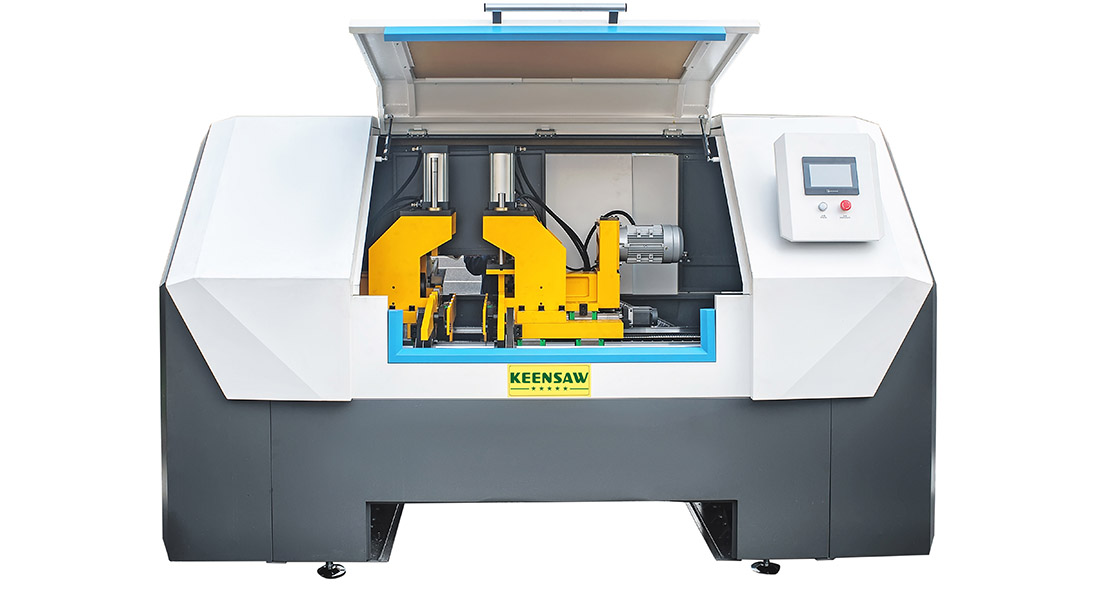

KCM-90CNC CNC Automatic Double End Chamfering Machine
Machine Features
1. This machine is controlled by PLC, clamping, feeding, spindle feed and other actions can be operated on touchscreen.
2. The spindle feed is controlled by absolute value servo motor, the speed of feed can be adjusted.
3. This machine is suitable for the end chamfering of round pipes and rods, and the optional processing ( center drilling… ) at one time, fast and accurate.
Machine Parameter
Model
KCM-60CNC-1000MM
KCM-90CNC-1000MM
Diameter Capacity
16-60mm
20-90mm
Pipe Length
250-1000mm
250-1000mm
Length Accuracy
±0.05mm
±0.05mm
Work Speed
4-8s/pcs
4-8s/pcs
Main Motor
3HP(2.2kw) x 2pcs
4HP(3.0kw) x 2pcs
Servo Motor
0.75kw x 2pcs
0.75kw x 2pcs
Air Pressure
6~8kg/cm2 (0.6~0.8MPa)
6~8kg/cm2 (0.6~0.8MPa)
Weight
1200kg
1300kg
Dimension
2400x1600x1700mm
2400x1600x1700mm
