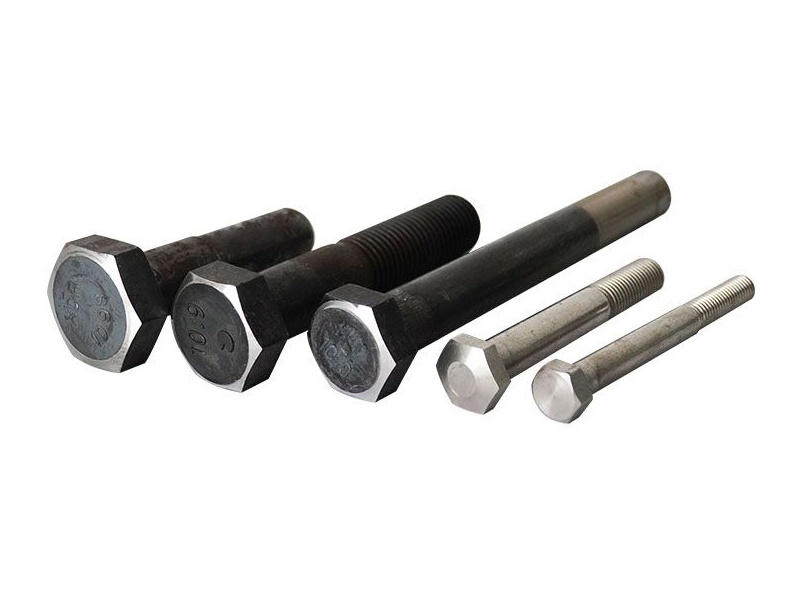

1. Specialized in chamfering the exterior angle of hex bolts or round bar quickly and accurately.
2. Digital counter for automatic operation (Quantity setup, Counter)
3. Manual material loading, automatic material feeding by carrier/lifter, automatic cutter feeding/retracting provides high operational speed and greatly increase productivity.
4. Changing sizes of cut are conveniently made by simply adjusting cutter head and changing clamp.
5. Extra function could be performed, center drilling, radius chamfer…
| Model | KCM-M42 | KCM-M65 |
| Type | Hydraulic drive | Hydraulic drive |
| Diameter Capacity | Hexagon Bolt M12-M42 Head Diameter ≤70mm |
Hexagon Bolt M24-M65 Head Diameter ≤105mm |
| Length | ≥100mm | ≥100mm |
| Work accuracy | ±0.1mm | ±0.1mm |
| Work Speed | 4-10s/pcs | 4-10s/pcs |
| Main Motor | 4HP (3.0kw) | 7.5HP (5.5kw) |
| Oil Pump | 2.2kw | 2.2kw |
| Hydraulic Pressure | 22~40kg/cm2 (2.2~4.0MPa) | 22~40kg/cm2 (2.2~4.0MPa) |
| Weight | 700KG | 800KG |
| Dimension | 1400x1700x1600mm | 1500x1800x1700mm |
